HD to HD + 3.5mm Audio Splitter Adapter, SPDIF, COAXIAL, 2CH/5.1CH, Audio Extractor Converter Audio Splitter with USB Cable

HD to HD + 3.5mm Audio Splitter Adapter, SPDIF, COAXIAL, 2CH/5.1CH, Audio Extractor Converter Audio Splitter with USB Cable

$40.00
Model HWLDZAKY
Availability: In Stock
Viewed 127 times

Product Description

Note:
1. Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio.
2. USB POWER - For devices with low power HD ports, the power adapter(Not including) can use the phone adapter(5V/1A)


Features :

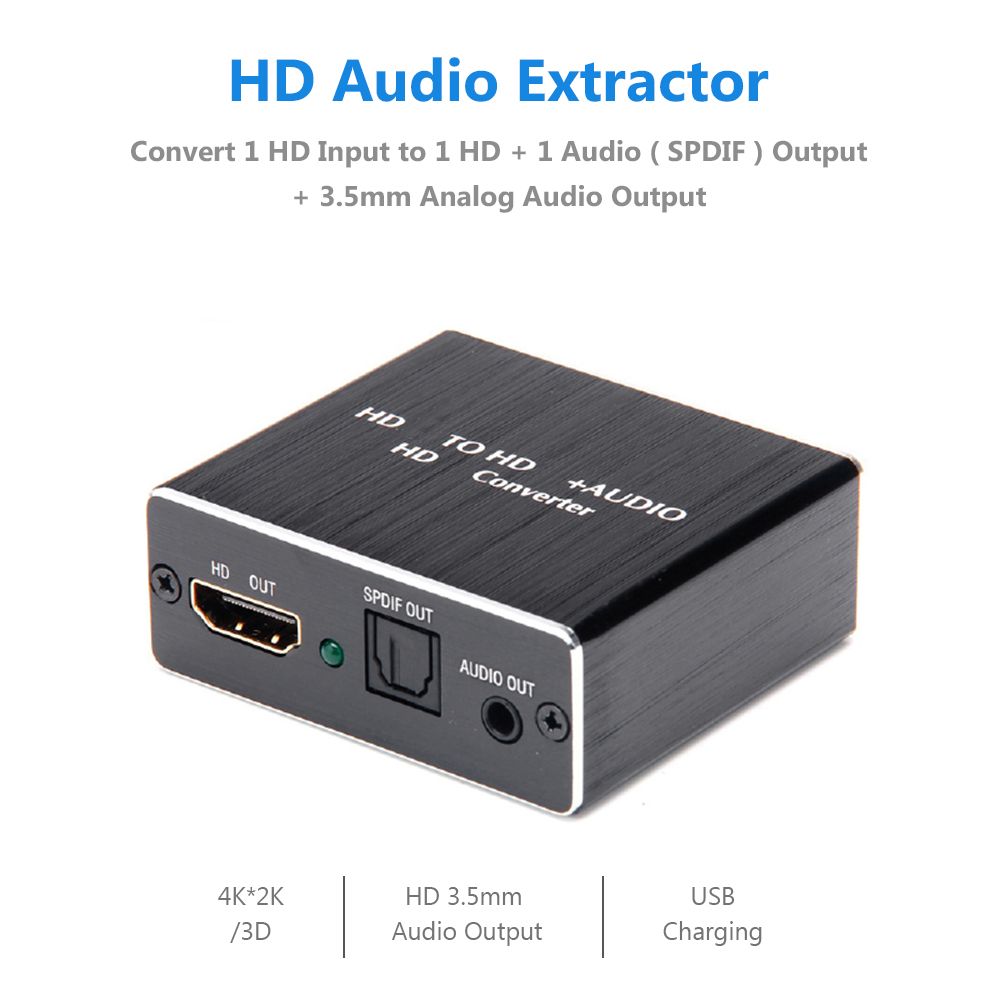

* Convert 1 HD Input to 1 HD + 1 Audio ( SPDIF ) Output + 3.5mm Analog Audio Output
* This 4K x 2K HD audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HD source.
* HD to achieve the synchronization of audio signal separation . There are PASS/2.0CH /5.1CH three kinds of audio mode options
* Input Resolution: Up to 3840x2160 @ 30Hz : 4096x2160@30Hz. LED clearly indicate the working state of the Extractor.
* It can extract the digital audio signal embedded in HD source and convert it through 3.5mm analog audio output and SPDIF output at the same time.

Three switing audio EDID settings:
Pass: HD pass mode. The audio and video can be convertered from the HD output. SPDIF and L/R will not output any sound.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HD input and the HD/ SPDIF and L/R output stereo audio.
5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HD/ SPDIF.

Specifications:

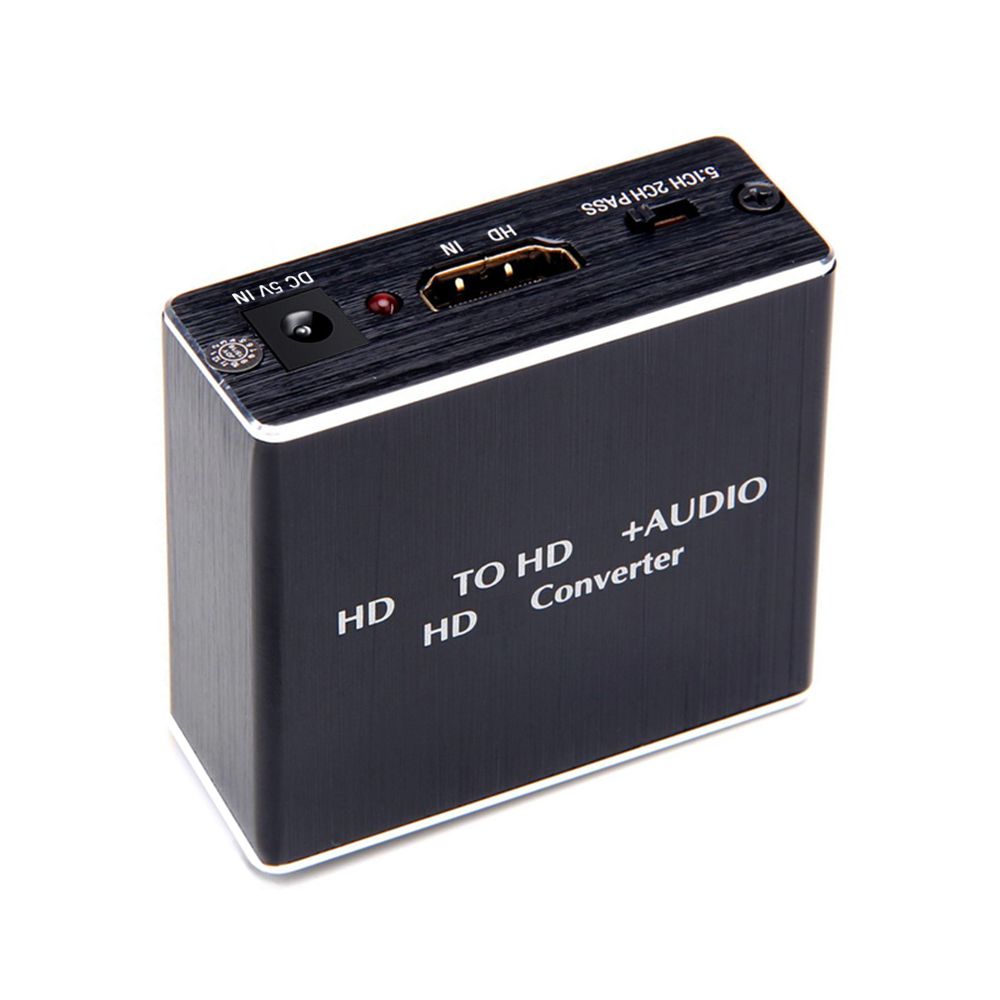

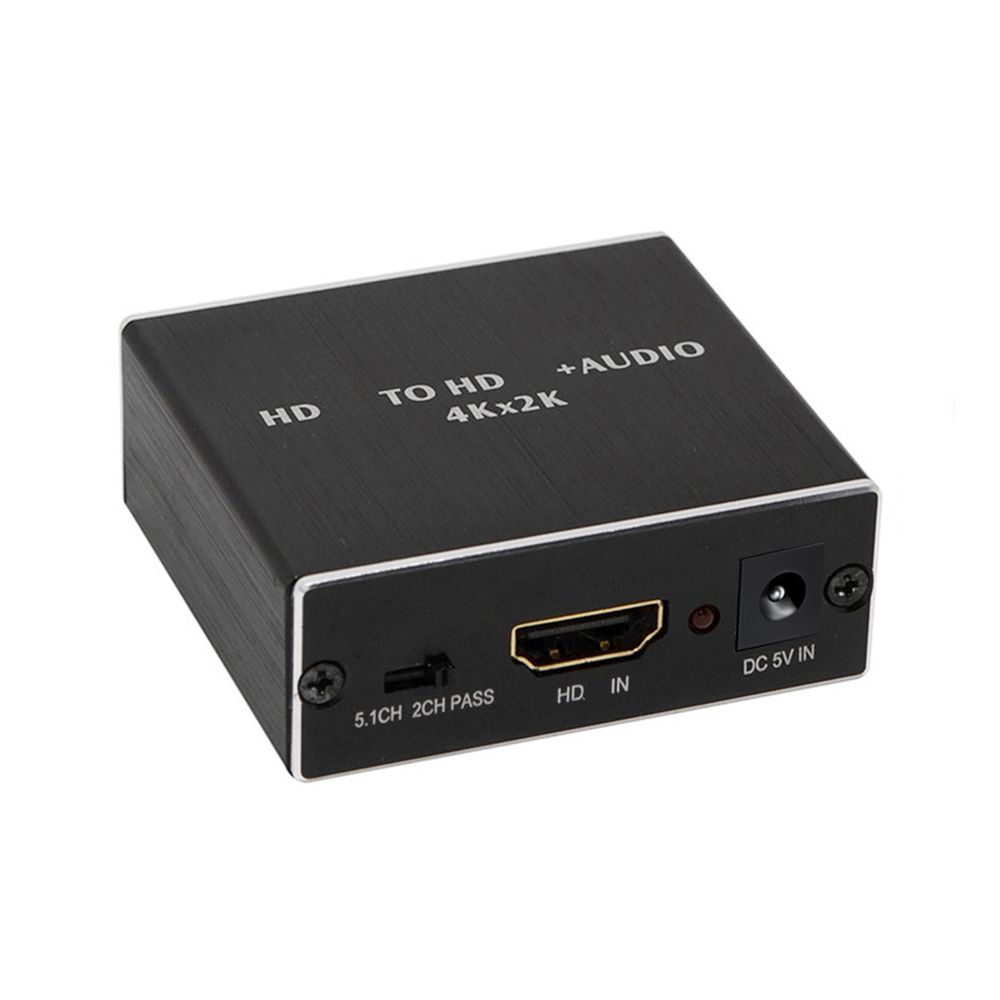

Input Port: 1 x HD IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

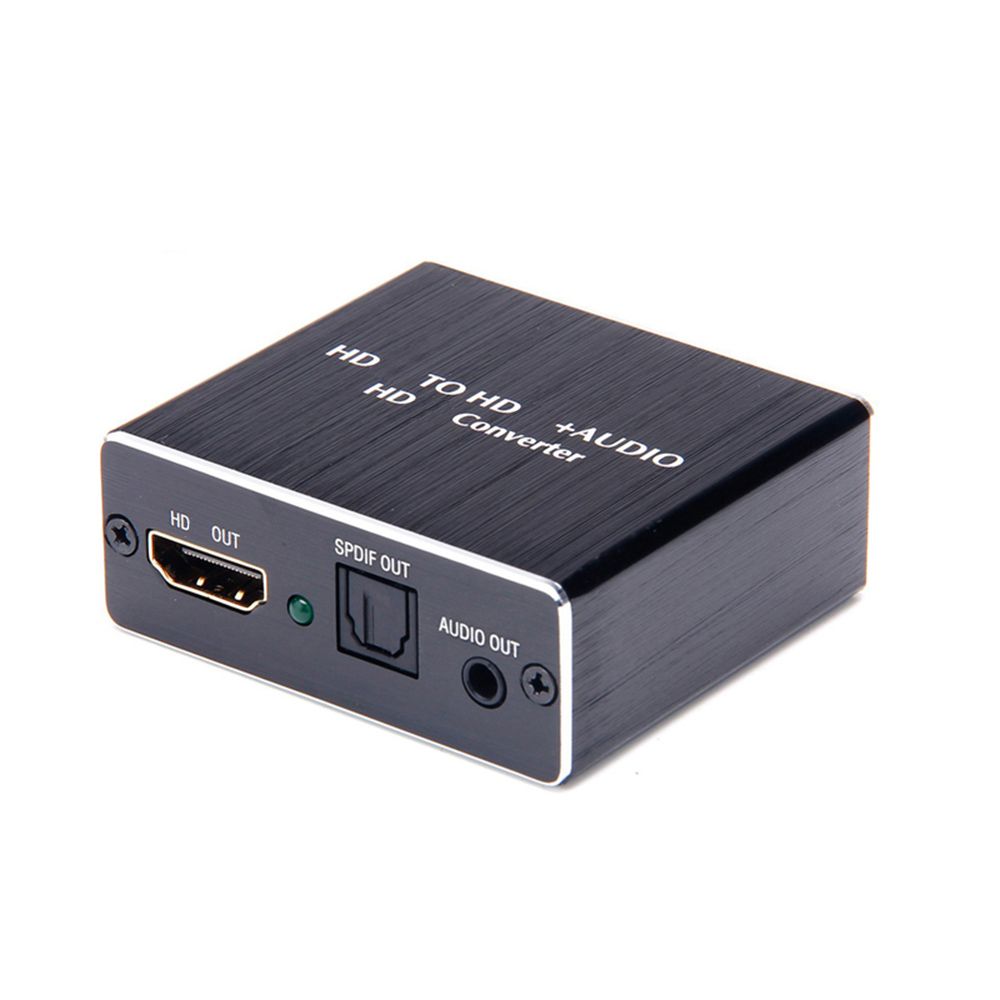

Output Port: 1 x HD OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HD resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

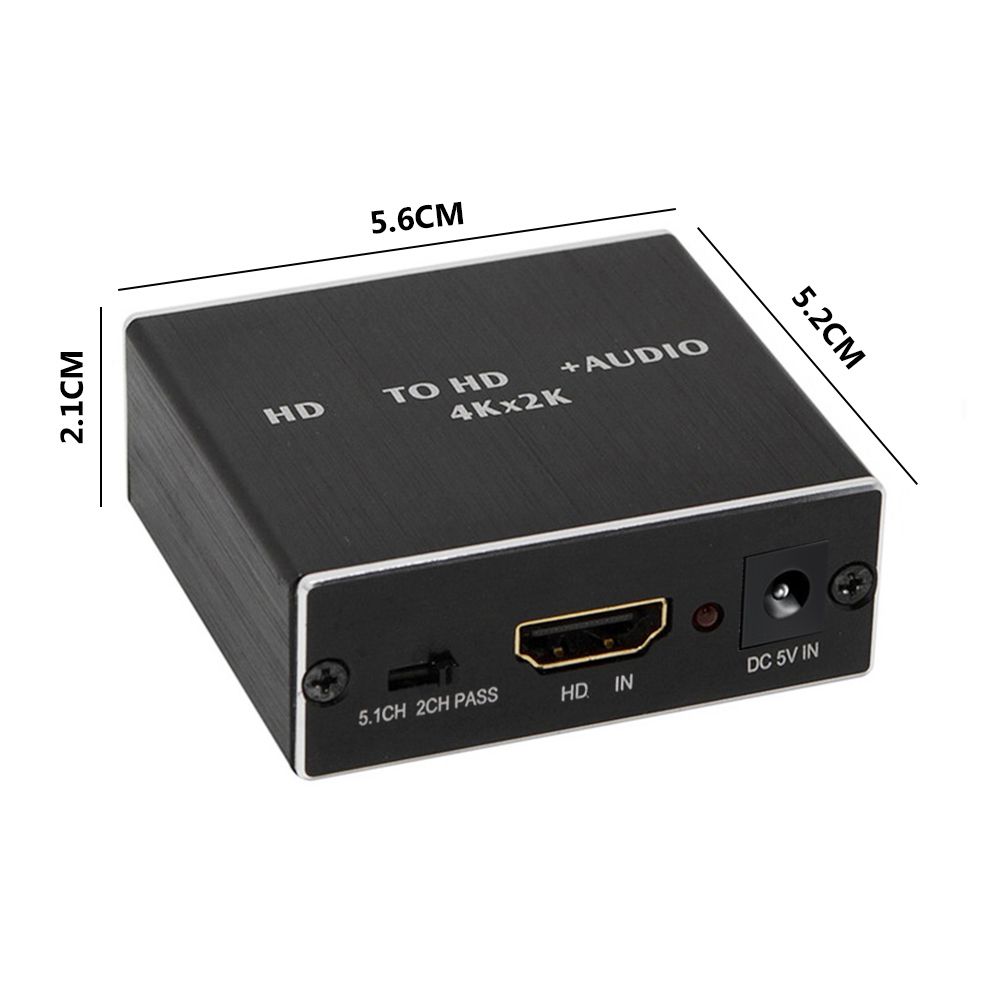

Item size: 5.8 * 5.3 * 2.3cm / 2.3 * 2.1 * 0.91in(L * W * H)
Item weight: Approx. 59g / 2.1oz
Package size: 14 * 9.5 * 2.5cm / 5.5 * 3.7 * 0.98in(L * W * H)
Package weight: 97g / 3.4oz

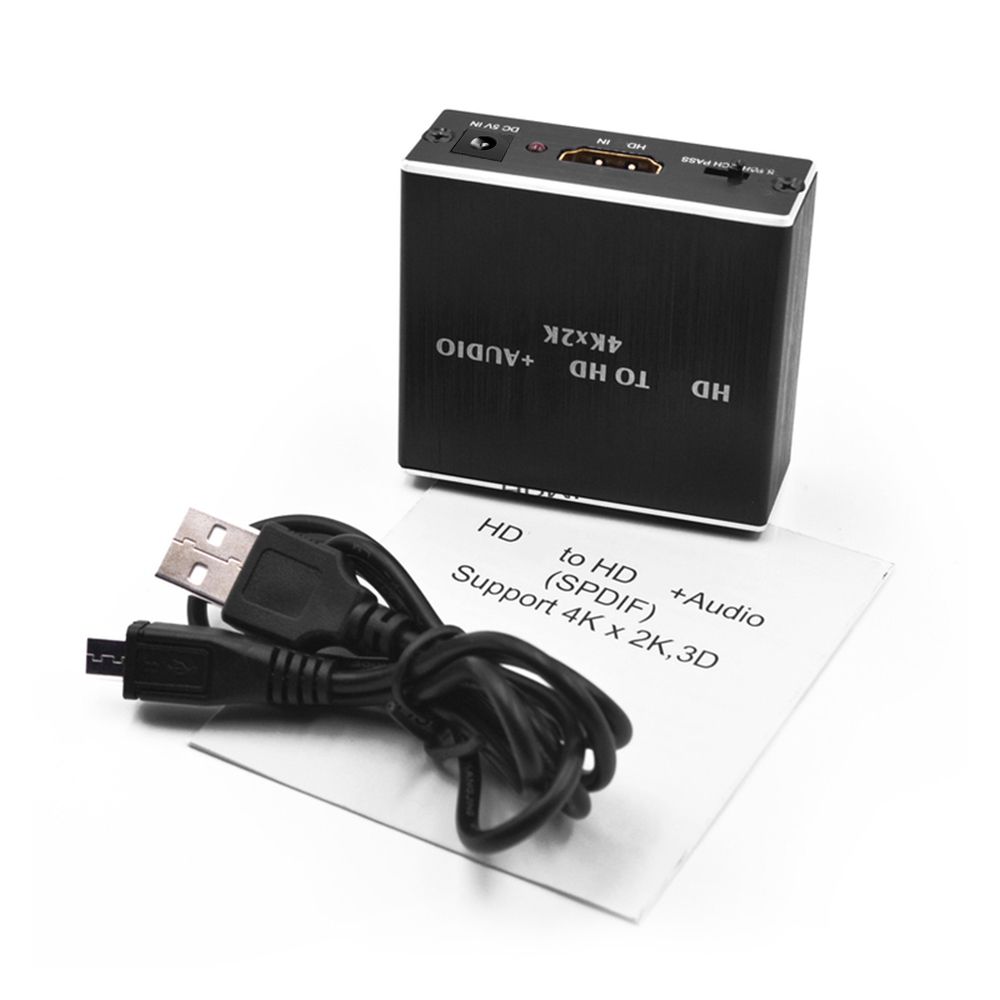

Package list:
1 * HD Audio Extractor
1 * Micro USB cable
